When industrial engineers discuss hazardous areas, the conversation almost always defaults to oil refineries, chemical plants, and flammable gases like hydrogen or methane. However, some of the most devastating industrial accidents in history have occurred in environments that seem completely harmless: grain silos, flour mills, and sugar processing plants.
The culprit is Combustible Dust.
When fine organic particles like flour, grain dust, or starch are suspended in the air in the right concentration, they become highly explosive. A single spark from an automated valve’s limit switch box can trigger a catastrophic chain reaction.
At Zhejiang KGSY Intelligent Technology Co., Ltd., we engineer valve monitoring solutions that protect against both gas and dust hazards. Understanding the specific requirements of Dust Ignition Protection (Ex t) is vital for securing bulk material handling facilities. This guide explains the mechanics of dust explosions and how to specify the correct KGSY equipment for your grain or flour mill.
1. The Anatomy of a Dust Explosion: The Dust Pentagon
Most people are familiar with the “Fire Triangle” (Fuel, Oxygen, Heat). For a dust explosion to occur, two additional elements are required, creating the Dust Explosion Pentagon:
-
Fuel: Combustible dust (e.g., flour, corn starch, grain dust).
-
Oxygen: Present in the ambient air.
-
Ignition Source: A spark from a micro-switch, static electricity, or a hot surface.
-
Dispersion: The dust must be suspended in the air as a cloud.
-
Confinement: The dust cloud must be enclosed (e.g., inside a silo, bucket elevator, or the factory building itself).
Automated valves are often located precisely where dispersion and confinement happen—at the bottom of silos, on pneumatic conveying lines, and near rotary valves. If the limit switch box on that valve is not properly protected, it provides the missing link: the ignition source.
2. What is “Ex t” Protection?
To protect against gas, we often use Explosion Proof (Ex d) enclosures designed to contain an internal blast. Dust protection, however, operates on a completely different philosophy governed by the IEC 60079-31 standard: Protection by Enclosure (Ex t).
The Ex t philosophy is simple and preventative: Keep the dust out, and keep the outside cool.
A limit switch box certified for dust (Ex tb or Ex tc) relies on two primary defensive mechanisms:
-
Total Dust Ingress Protection (IP Rating): The enclosure must be completely dust-tight to prevent particles from reaching the internal electrical contacts.
-
Surface Temperature Limitation: The outer housing must not get hot enough to ignite a layer of dust resting on top of it.
3. The Critical Role of Ingress Protection (IP6X)
In a flour mill, airborne dust is insidious. It settles on every surface and finds its way into the smallest crevices. If dust breaches a limit switch box, two dangerous things happen:
-
Mechanical Failure: The dust coats the cams and the mechanical micro-switches, eventually jamming the mechanism and providing false valve position feedback to the control room.
-
Electrical Arcing: Organic dust can bridge electrical terminals. When the micro-switch opens or closes, this dust bridge can cause a continuous electrical arc, generating massive heat and potentially igniting the dust inside the box, which then blows out into the facility.
The KGSY Solution: Precision Sealing
To achieve Ex t certification, the equipment must have an Ingress Protection rating of at least IP65, though IP66 or IP67 is heavily preferred.
KGSY achieves this by machining the mating surfaces of our die-cast aluminum enclosures to microscopic tolerances. We utilize high-grade, continuous O-rings (NBR or Silicone) at all entry points—including the main cover, the visual indicator dome, and the dynamic rotary shaft. This ensures that even the finest powdered sugar or wheat flour cannot penetrate the enclosure.
4. The “Blanketing Effect” and Surface Temperature
The most unique danger of combustible dust is the Blanketing Effect.
Unlike gas, which dissipates, dust settles and accumulates. If a 5mm layer of flour settles on top of a limit switch box, it acts as a highly effective thermal blanket. It insulates the box, preventing any internal heat (generated by the electronics or conducted from a hot process pipe) from escaping into the air.
As the box gets hotter under the dust blanket, it approaches the dust’s Minimum Ignition Temperature (MIT). If the surface reaches this temperature, the dust layer will begin to smolder and eventually burst into flames, acting as a pilot light for a massive airborne dust cloud explosion.
Understanding Dust T-Classes
When specifying KGSY equipment for a dust zone, you must look at the maximum surface temperature rating, denoted as T followed by a temperature in Celsius (e.g., T85°C or T135°C).
-
The Rule of Thumb: The maximum surface temperature of your KGSY switch box must be at least 75°C less than the MIT of a 5mm dust layer, and at least 2/3 of the MIT of the dust cloud.
-

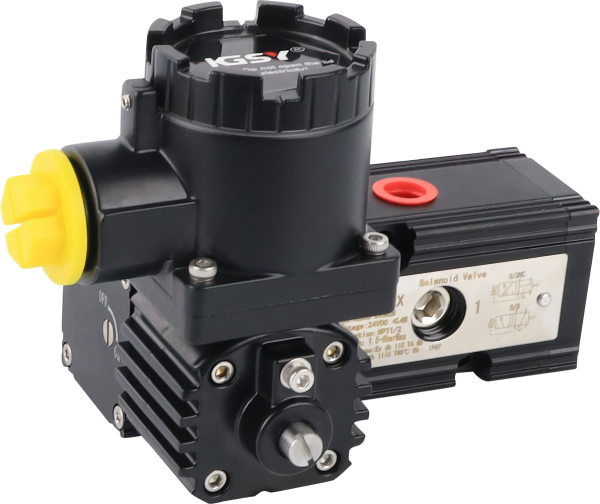

Our KG800 and FC800 series are meticulously designed with thermal dissipation in mind, ensuring that the external surfaces remain well below the ignition thresholds of common agricultural and food processing dusts.
5. Selecting the Right KGSY Switch Box for Your Zone
Dust hazard areas are classified into Zones based on the frequency and duration of the dust cloud’s presence:
Zone 22 (Abnormal/Infrequent Dust)
This is an area where a combustible dust cloud is not likely to occur in normal operation, but if it does, it will only persist for a short period. This often includes bagging areas or storage rooms.
-
KGSY Recommendation: The standard APL-210 or APL-310 series, provided they are fitted with high-quality IP67 seals and appropriate cable glands, are often suitable for these lower-risk areas, offering a highly cost-effective and reliable solution.
Zone 21 (Normal/Frequent Dust)
This is an area where a combustible dust cloud is likely to occur occasionally during normal operation. This includes areas near discharging silos, milling machinery, and conveyor transfer points.
-
KGSY Recommendation: This requires formal Ex tb certification. Our heavy-duty KG800 and FC800 series are Dual Certified for both gas (Ex db) and dust (Ex tb). By utilizing these robust enclosures, you guarantee maximum IP67 protection and strictly controlled surface temperatures, ensuring absolute compliance and safety in high-dust environments.
Conclusion: Don’t Underestimate the Dust
A flour mill may not smell like an oil refinery, but the explosive potential is just as lethal. Securing your bulk material handling facility means recognizing that airborne dust requires specialized, certified hardware.
By prioritizing total Ingress Protection and thermal management, Zhejiang KGSY Intelligent Technology Co., Ltd. provides valve monitoring solutions that keep your process running and your facility safe from the invisible threat of combustible dust.
