How to Choose a Limit Switch Box?
Choosing the right Limit Switch Box is a crucial step for ensuring accurate valve position monitoring and reliable automation in industrial systems. A limit switch box, sometimes referred to as a valve position indicator, is a compact device mounted on valve actuators to signal open or closed positions. It plays an essential role in process control, safety, and system efficiency across industries such as oil and gas, chemical processing, water treatment, and power generation.
While limit switch boxes may appear simple from the outside, the process of choosing the right one involves a deep understanding of application requirements, technical parameters, environmental conditions, and long-term maintenance goals. This article provides a comprehensive guide on how to choose a limit switch box, what parameters to check, and why selecting the right model can make a difference to operational safety and productivity.
Why Choosing the Right Limit Switch Box Matters
A limit switch box is more than just an accessory; it is an integral part of the valve control system. Selecting the wrong model can lead to:
- Incorrect valve feedback signals
- System downtime due to malfunction or misalignment
- Increased maintenance costs
- Safety hazards in critical operations
- Reduced system efficiency
On the other hand, a carefully chosen limit switch box ensures:
- Accurate valve position feedback
- Smooth integration with control systems
- Long-term reliability in harsh environments
- Compliance with international safety and quality standards
- Lower total cost of ownership
Understanding the Function of a Limit Switch Box
Position Indication
A limit switch box provides clear feedback of valve position—either visually through a mechanical indicator or electronically through switches and sensors.
Electrical Signal Transmission
It transmits electrical signals to the control system, confirming whether the valve is open, closed, or in an intermediate position.
Safety Monitoring
By ensuring the valve position is accurately tracked, it prevents operational errors and improves plant safety.
Integration with Accessories
Limit switch boxes often work together with solenoid valves, positioners, or actuators to complete the automation loop.
Key Factors to Consider When Choosing a Limit Switch Box
1. Type of Valve and Actuator
Not every limit switch box fits all valves. The first step is to identify whether the valve is a ball valve, butterfly valve, gate valve, or globe valve, and whether it is operated by pneumatic, electric, or hydraulic actuators. The mounting standard, typically ISO 5211, should also be checked to ensure compatibility.
2. Mechanical vs. Proximity Switches
Limit switch boxes may contain mechanical switches, inductive proximity sensors, or even magnetic sensors.
- Mechanical switches are cost-effective and suitable for general applications.
- Proximity sensors offer longer service life and higher reliability in vibration-heavy or harsh environments.
- Magnetic switches are ideal for explosion-proof or hazardous environments.
3. Environmental Conditions
- Outdoor installation: may require weatherproof and UV-resistant housings.
- Dusty or dirty plants: may need enclosures with a high IP rating (IP65 or higher).
- Wet or submerged conditions: demand at least IP67.
- Hazardous or explosive areas: require ATEX or Class explosion-proof certification.
4. Electrical Compatibility
The voltage and current requirements of the switches must be matched with the control system. Options typically include:
- 24V DC
- 110V AC
- 220V AC
Ensuring electrical compatibility prevents wiring issues and extends equipment life.
5. IP Rating and Protection Standards
IP ratings (Ingress Protection) define how resistant the enclosure is to dust and water. For instance:
- IP65: Dust tight and resistant to low-pressure water jets.
- IP67: Dust tight and resistant to immersion up to 1 meter.
For chemical or marine industries, higher protection levels are recommended.
6. Certifications and Compliance
A limit switch box for industrial use should comply with relevant certifications such as CE, CCC, ATEX, SIL3, TÜV.
7. Visibility and Indicators

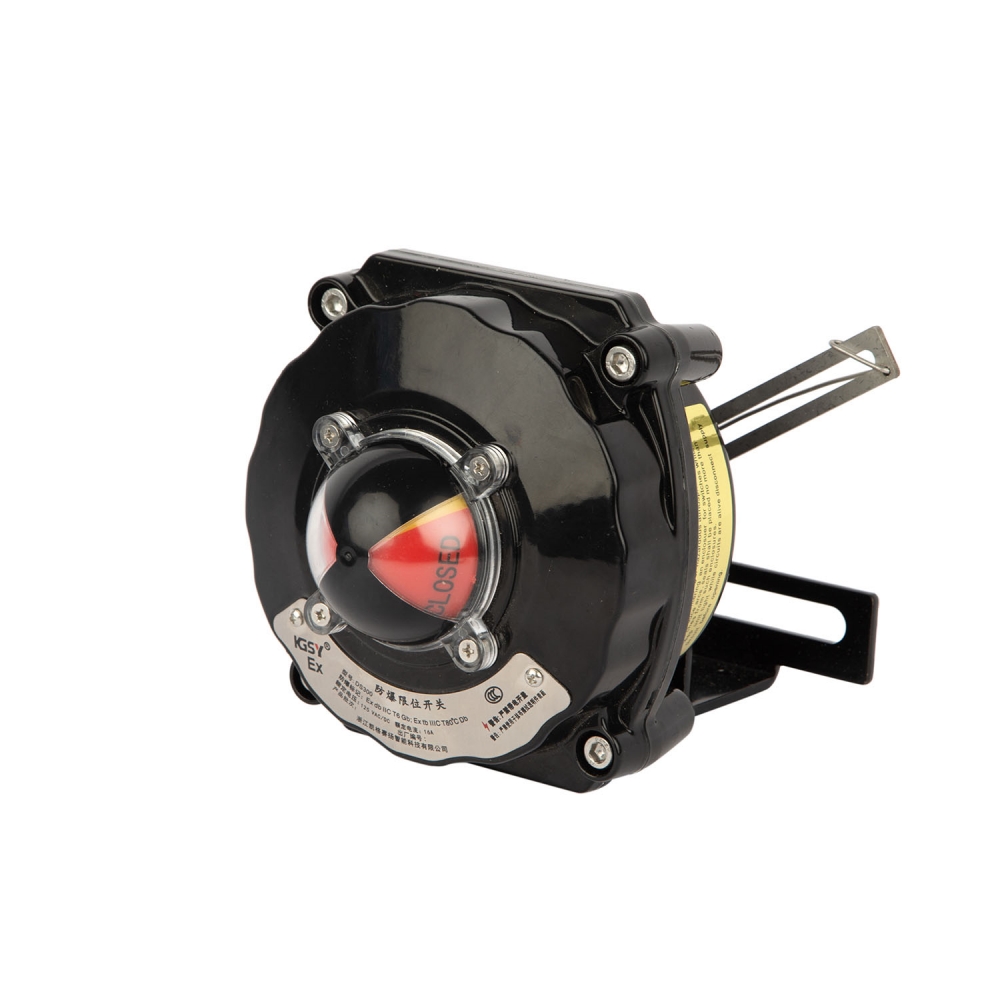

For operators working on-site, a clear, durable, and visible indicator is essential. Dome-shaped indicators with bright colors are common, and some advanced models use LED indicators for easy visibility.
8. Durability and Materials
- Aluminum alloy: Lightweight and corrosion-resistant.
- Stainless steel: Best for chemical, marine, or food industries.
- Plastic housings: Cost-effective but suitable for less demanding environments.
9. Maintenance and Serviceability
A good limit switch box should be easy to install, calibrate, and maintain. Features such as quick-release covers, modular design, and self-cleaning mechanisms enhance user convenience.
10. Cost vs. Value
While initial cost is important, buyers should consider total cost of ownership. A higher-quality limit switch box may reduce downtime, maintenance, and replacement costs, making it a better investment in the long run.
Common Mistakes to Avoid When Selecting a Limit Switch Box
Ignoring Environmental Protection
Selecting a low IP-rated box for outdoor or marine environments often leads to premature failure.
Overlooking Certification Requirements
Neglecting ATEX or explosion-proof certification can lead to non-compliance penalties and safety risks.
Choosing Based Solely on Price
The cheapest model may not provide adequate durability or reliability, resulting in higher replacement and maintenance costs later.
Mismatched Actuator Compatibility
Failing to verify ISO mounting standards may cause installation difficulties.
Practical Steps to Select the Right Limit Switch Box
- Define the application – Identify valve type, actuator type, and operational environment.
- Check protection level – Determine the necessary IP rating based on environmental conditions.
- Verify certifications – Ensure compliance with required safety and quality standards.
- Review switch type – Choose between mechanical, inductive, or magnetic sensors.
- Match electrical parameters – Align voltage and current ratings with the control system.
- Evaluate durability – Select the right material for the housing.
- Consider operator visibility – Ensure indicators are clear and easy to read.
- Balance cost and performance – Invest in long-term value rather than lowest upfront cost.
Real-World Applications of Limit Switch Boxes
Oil and Gas Industry
Explosion-proof limit switch boxes are essential in hazardous areas to prevent ignition risks.
Water Treatment Plants
Waterproof IP67 housings protect against immersion and ensure reliability in submerged conditions.
Food and Beverage Industry
Stainless steel housings prevent corrosion and maintain hygiene standards.
Power Plants
Durable switch boxes with SIL3 certification enhance safety and reliability in critical operations.
Zhejiang KGSY Intelligent Technology Co., Ltd. – A Trusted Solution
Zhejiang KGSY Intelligent Technology Co., Ltd. is a high-tech manufacturer specializing in valve intelligent control accessories, including limit switch boxes, solenoid valves, pneumatic actuators, and valve positioners. With advanced R&D, strict ISO9001 quality management, and certifications such as CE, TUV, ATEX, SIL3, IP67, and explosion-proof ratings, KGSY provides reliable solutions trusted by industries worldwide. Their products are widely applied in petroleum, chemical, natural gas, metallurgy, pharmaceuticals, water treatment, food, and power generation industries, with exports to more than 20 countries across Asia, Africa, Europe, and America.
Conclusion
Choosing the right Limit Switch Box requires careful evaluation of valve compatibility, environmental conditions, certifications, IP ratings, and long-term durability. By focusing on these parameters, users can avoid common mistakes and select a reliable solution that ensures system safety, efficiency, and compliance. Zhejiang KGSY Intelligent Technology Co., Ltd. offers high-quality limit switch boxes designed for various industries and applications, ensuring reliable valve automation for years to come.
