How to Install and Calibrate a Limit Switch Box on Valves?

Introduction

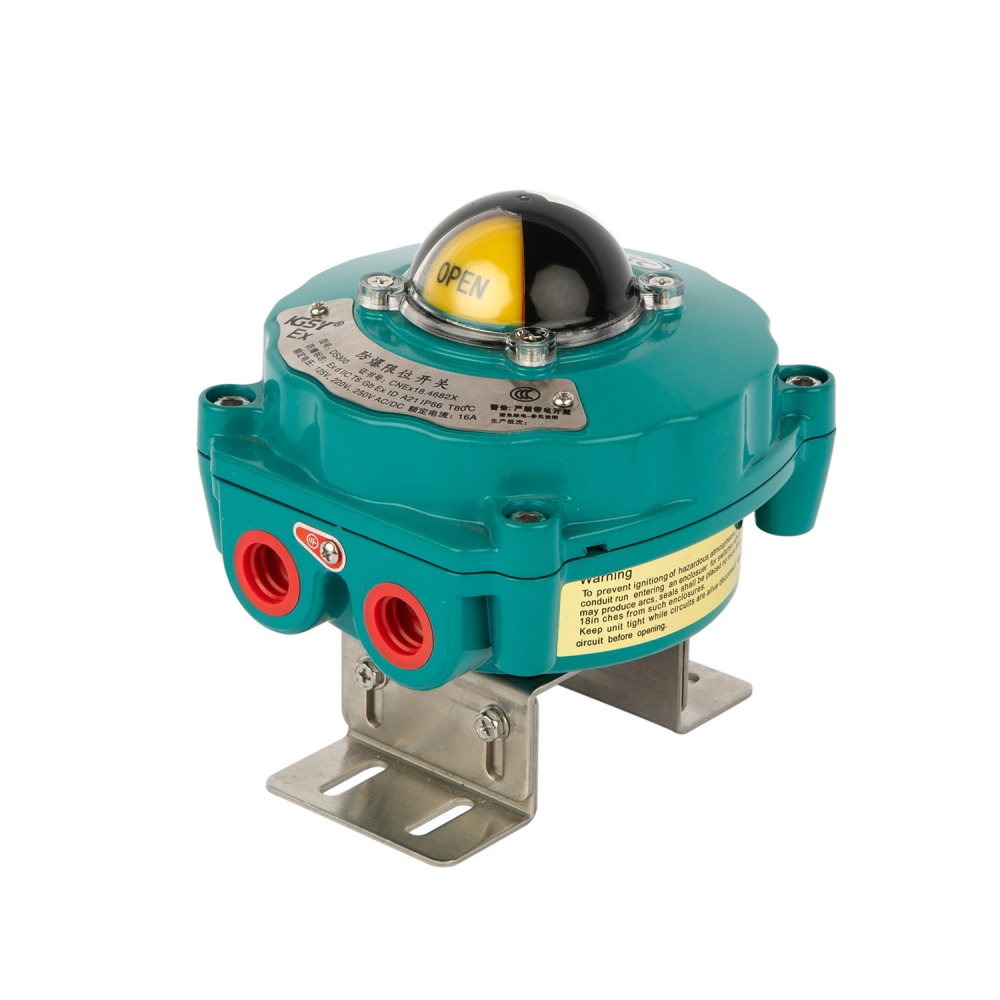

A limit switch box is a critical accessory in valve automation systems, ensuring operators and control systems have accurate information about valve positions. Without proper installation and calibration, even the most advanced actuator or valve system may fail to provide reliable feedback. For industries like oil and gas, water treatment, power generation, and chemical processing, this accuracy is directly tied to safety, efficiency, and compliance.

This article provides a step-by-step guide on installing and calibrating a limit switch box on different types of valve actuators. It also covers required tools, best practices, and troubleshooting tips. Whether you are a technician, engineer, or plant manager, this comprehensive resource will help you understand how to achieve a proper setup and maintain long-term reliability.

Understanding the Role of a Limit Switch Box

Before installation, it’s important to understand what the device does:

• Monitors valve position (open/closed or intermediate).

• Sends electrical signals to control rooms or PLCs.

• Provides visual indication on-site via mechanical indicators.

• Ensures safe operation by preventing incorrect valve handling.

• Integrates automation for large-scale industrial control systems.

Proper installation and calibration are what make these functions reliable in real-world applications.

Tools and Equipment Needed for Installation

When preparing for installation, always gather the correct tools to ensure a smooth process.

Basic Tools

• Screwdrivers (flat-head and Phillips).

• Adjustable spanner or wrench set.

• Hex/Allen keys (for actuator mounting).

• Torque wrench (for correct tightening).

Electrical Tools

• Wire stripper and cutter.

• Multimeter (for continuity and voltage testing).

• Crimping tool for terminal connections.

Additional Equipment

• Calibration manual (specific to the model).

• Cable glands and conduit fittings.

• Protective gloves and safety glasses.

• Anti-corrosion grease (for harsh environments).

Step-by-Step Installation of a Limit Switch Box

1. Safety Preparation

• Shut down the system and isolate power supply.

• Ensure the valve actuator is in a safe position (often fully closed).

• Confirm no process media (e.g., gas, water, or chemicals) is flowing.

2. Mounting the Switch Box

• Place the limit switch box directly on top of the actuator’s mounting pad.

• Align the drive shaft or coupling with the actuator stem.

• Use the supplied bolts or screws to secure the box tightly.

• For pneumatic actuators, ensure NAMUR standard mounting compatibility.

3. Connecting the Cam Mechanism

• Adjust the cam followers inside the box to correspond with the actuator’s rotation.

• Typically, one cam corresponds to the open position, and the other to the closed position.

• Tighten the cams onto the shaft after proper alignment.

4. Wiring the Switch Box

• Feed electrical cables through cable glands into the terminal block.

• Connect the wires according to the manufacturer’s diagram (e.g., NO/NC contacts).

• For proximity or inductive sensors, follow polarity requirements.

• Use a multimeter to test continuity before closing the enclosure.

5. External Indicator Setup

• Attach or align the mechanical dome indicator.

• Ensure the indicator matches the valve’s actual open/closed position.

6. Sealing the Enclosure

• Apply gaskets and tighten all cover screws.

• For explosion-proof models, ensure flame paths are clean and not damaged.

• For outdoor environments, use IP-rated cable glands to maintain sealing integrity.

Calibrating a Limit Switch Box

Calibration ensures that the signal output from the switch box matches the actual valve position.

1. Initial Check

• Manually operate the valve (open and close).

• Verify that the indicator dome matches the actual position.

2. Adjusting the Cams

• Rotate the actuator shaft to the closed position.

• Adjust the cam until the switch activates at the exact closed point.

• Lock the cam in place.

• Repeat the process for the open position.

3. Electrical Signal Verification

• With a multimeter, check if the open/closed signal is sent correctly.

• For advanced models, confirm 4–20mA feedback signals or digital communication outputs.

4. Intermediate Calibration (if applicable)

• Some smart switch boxes allow mid-position calibration.

• Follow manufacturer instructions to configure these signals.

5. Final Test

• Operate the valve actuator through several open/close cycles.

• Ensure signals, dome indicators, and control system feedback are consistent.

Common Mistakes During Installation and Calibration

1. Incorrect cam alignment – Causes false open/closed signals.

2. Loose wiring – Leads to intermittent feedback or system faults.

3. Improper sealing – Allows moisture ingress, damaging electronics.

4. Over-tightening bolts – Risks damaging the actuator mounting threads.

5. Ignoring polarity – Especially important for proximity sensors.

Maintenance Tips for Long-Term Reliability

• Inspect the enclosure every 6–12 months for water, dust, or corrosion.

• Verify signal accuracy during scheduled shutdowns.

• Apply lubrication to moving parts where recommended.

• Replace worn-out micro-switches or sensors proactively.

• For explosion-proof units, never modify or repaint without approval.

Troubleshooting Guide

Problem: No signal from the switch box

• Check wiring connections.

• Test switches with a multimeter.

• Verify actuator movement.

Problem: Wrong position feedback

• Recalibrate the cams.

• Confirm mechanical linkage is not slipping.

Problem: Moisture inside enclosure

• Replace damaged gaskets.

• Use correct IP-rated glands.

Problem: Frequent switch failure

• Upgrade to proximity sensor models if vibration is an issue.

Industry Applications of Installed and Calibrated Limit Switch Boxes

• Petroleum & Natural Gas – Offshore platforms requiring ATEX-certified boxes.

• Water Treatment Plants – Continuous monitoring of valve states in pipelines.

• Pharmaceutical Industry – Stainless steel units for hygienic environments.

• Food Processing – Precise control of automated valves for safety and quality.

• Power Plants – Monitoring critical steam and cooling water valves.

Why Work with Professionals?

While installation can be performed in-house, working with a professional manufacturer like Zhejiang KGSY Intelligent Technology Co., Ltd. ensures:

• Access to high-quality switch boxes with international certifications (CE, ATEX, SIL3).

• Expert technical support for calibration.

• Reliable long-term operation with proper documentation.

KGSY specializes in manufacturing valve limit switch boxes, solenoid valves, pneumatic actuators, and related accessories, serving industries worldwide with certified, durable products.

Frequently Asked Questions (FAQs)

1. Can I install a limit switch box myself?
Yes, if you have technical knowledge. However, certified professionals are recommended for hazardous environments.

2. How often should calibration be performed?
At installation, and then at least once every 6–12 months.

3. Do all limit switch boxes require calibration?
Yes. Even factory-pre-set models may need fine-tuning depending on the actuator.

4. What is the most common failure point?
Incorrect cam settings or loose wiring inside the enclosure.

5. Can one switch box fit different valves?
Yes, most are universal with NAMUR mounting, but always check compatibility.

Conclusion

Installing and calibrating a limit switch box is not just a technical task—it is essential for ensuring safety, process accuracy, and reliable feedback in automated valve systems. By following correct installation procedures, using the right tools, and adhering to calibration steps, industries can maintain efficient operations while minimizing risks.

With high-quality products from trusted manufacturers like Zhejiang KGSY Intelligent Technology Co., Ltd., companies can ensure their valve automation systems meet international standards and deliver consistent performance for years to come.
