In the industrial field, “visibility” equates to “safety.” When a technician walks through a sprawling chemical plant or an offshore oil platform, they must be able to determine the status of a valve—Open or Closed—at a glance. While the electrical signal goes to the control room, the Visual Position Indicator on top of the limit switch box provides the local confirmation necessary for maintenance and emergency response.
At KGSY, we offer two primary styles of visual feedback: the classic 2D Flat Indicator and the high-visibility 3D Dome Indicator. While both serve the same purpose, their design, visibility range, and application suitability differ significantly.
This guide explores the engineering behind these indicators and helps you choose the right model for your automation system.
1. The 2D Flat Indicator: Precision in Compact Spaces

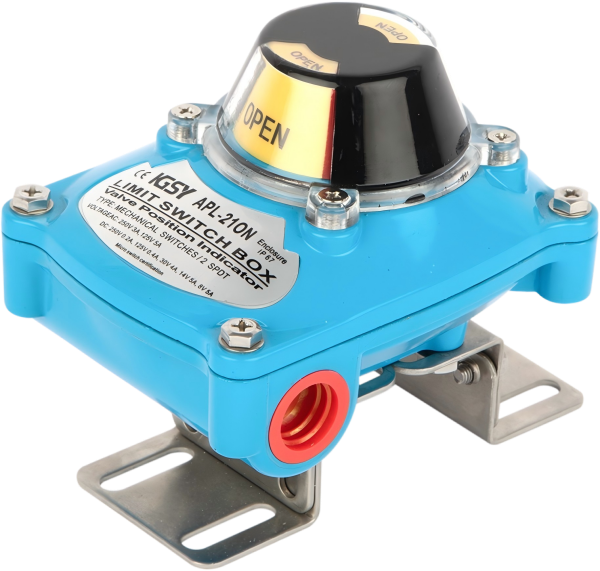

The 2D Flat Indicator is the traditional choice for valve monitoring. It is typically found on our APL-210N and some ALS series models.
Design and Mechanism
A 2D indicator consists of a flat, disc-shaped plate or a simple pointer mounted on the top of the limit switch box shaft. The plate is usually printed with a clear “Open/Closed” legend or a color-coded line (Yellow for Open, Red for Closed).
Advantages of the 2D Design
- Low Profile: Because it does not protrude significantly above the switch box, it is ideal for tight installations where vertical space is limited.
- Cost-Effectiveness: 2D indicators are mechanically simpler, making them a budget-friendly option for large-scale utility projects like water treatment or HVAC.
- Mechanical Simplicity: With no external dome to crack or tarnish, 2D pointers are incredibly durable in environments with falling debris.
Limitations
The primary drawback of a 2D indicator is the viewing angle. To read a 2D indicator, the operator typically needs to be standing directly in front of or slightly above the valve. From a distance or a side angle, it can be difficult to discern the valve position.
2. The 3D Dome Indicator: Maximum Visibility
The 3D Dome Indicator (often called a “Beacon”) is the flagship feature of the KGSY DSK Series and the KG800 Series. It represents the modern standard for high-performance valve monitoring.
Design and Mechanism
The 3D indicator features a raised, hemispherical or “dome” shaped window made of high-impact polycarbonate. Inside, a color-coded cylinder (usually Red/Green or Red/Yellow) rotates 90 degrees.
Why the 3D Dome is Superior for Large Facilities
- 360-Degree Visibility: The raised dome allows the status to be seen from almost any angle—front, side, or even from below. This is critical for valves mounted high on pipe racks.
- Color Contrast: KGSY uses high-visibility UV-resistant dyes. The bold contrast between colors (e.g., a solid block of Yellow vs. a solid block of Red) is much easier for the human eye to process than a thin needle or a flat plate.
- The “Beacon” Effect: In low-light environments or during night shifts, the 3D dome catches ambient light better than a flat surface, acting as a beacon for plant operators.
3. Technical Comparison: Material Science and Durability
At KGSY, the “Indicator” is more than just a piece of plastic; it is a precision-engineered component designed to survive the elements.
Polycarbonate (PC) vs. Glass
For our 3D domes, such as those on the DSK100, we use high-grade Polycarbonate.
- Impact Resistance: PC is virtually unbreakable, protecting the internal cams even if struck by a tool during maintenance.
- UV Protection: Standard plastics yellow and become brittle in the sun. KGSY indicators are UV-stabilized to ensure the window stays clear for years of outdoor service.
The “Double-Seal” Innovation
A common point of failure in 3D indicators is water ingress through the indicator cap. KGSY has solved this in the DSK series through a double-sealing mechanism:
- Outer Seal: An O-ring protects the dome cap.
- Inner Seal: An additional shaft seal prevents moisture from traveling down into the micro-switches if the dome is ever damaged.
This ensures that your electrical contacts (whether silver or gold-plated) remain bone-dry even in tropical rain.
4. Selection Criteria: Which KGSY Box Fits Your Needs?
Based on our product catalog, here is how to select the indicator for your application:
Choose a 2D Indicator (APL-210 / ALS-200) if:
- Space is tight: You are mounting valves inside small cabinets or under low ceilings.
- Budget is the priority: You are managing a large-scale project with thousands of non-critical valves.
- Maintenance is close-range: Operators can easily walk right up to the valve to check its status.
- Safety is Paramount: The valve is part of a safety system (ESD) where visual confirmation must be instantaneous.
- Outdoor/High-Rack Mounting: The valve is mounted more than 2 meters high or in a dimly lit area of the plant.
- Harsh Environments: You require the extra protection and sealing offered by the DSK series’ advanced indicator housing.
Choose a 3D Dome Indicator (DSK100 / KG800) if:
5. Customization: Beyond Red and Green
While Red (Closed) and Yellow/Green (Open) are the global standards, KGSY understands that different industries have different color codes (e.g., the power industry often uses different logic).
Our indicators are modular. Upon request, we can provide:
- 3-Way Indicators: For T-port or L-port ball valves, showing flow paths (L-port, T-port, 90-degree flow).
- Text Options: ”OPEN/CLOSED” text embossed or printed for added clarity.
- Specialty Colors: Custom color configurations to match specific plant requirements.
Conclusion: Visibility is Reliability
In the philosophy of Zhejiang KGSY Intelligent Technology Co., Ltd., quality is credibility. Whether you choose the streamlined APL series with a 2D indicator or the high-visibility DSK series with a 3D dome, you are receiving a product tested for environmental endurance and mechanical precision.
A 3D dome may seem like a small upgrade, but in a high-pressure industrial environment, the ability to see a valve’s status from 30 meters away can save time, prevent errors, and ensure the safety of your personnel.
Ready to enhance your plant’s visibility?
Consult the KGSY technical team to find the right limit switch box and indicator combination for your next project.
