Why Is My Limit Switch Box Stuck or Misaligned? Maintenance and Repair Guide

A Limit Switch Box is a crucial component of valve automation systems, providing position feedback and ensuring the correct operation of pneumatic or electric actuators. When a limit switch box becomes stuck or misaligned, it can disrupt automated valve control, cause inaccurate feedback, and even lead to safety hazards in process industries. Understanding why this happens, how to maintain it properly, and whether it should be repaired or replaced is essential for every plant maintenance engineer and instrument technician.

In this article, we will explore three key questions in depth:

1. Why is my limit switch box stuck or misaligned?
2. How often should I maintain a limit switch box?
3. Can a limit switch box be repaired, or should it be replaced?

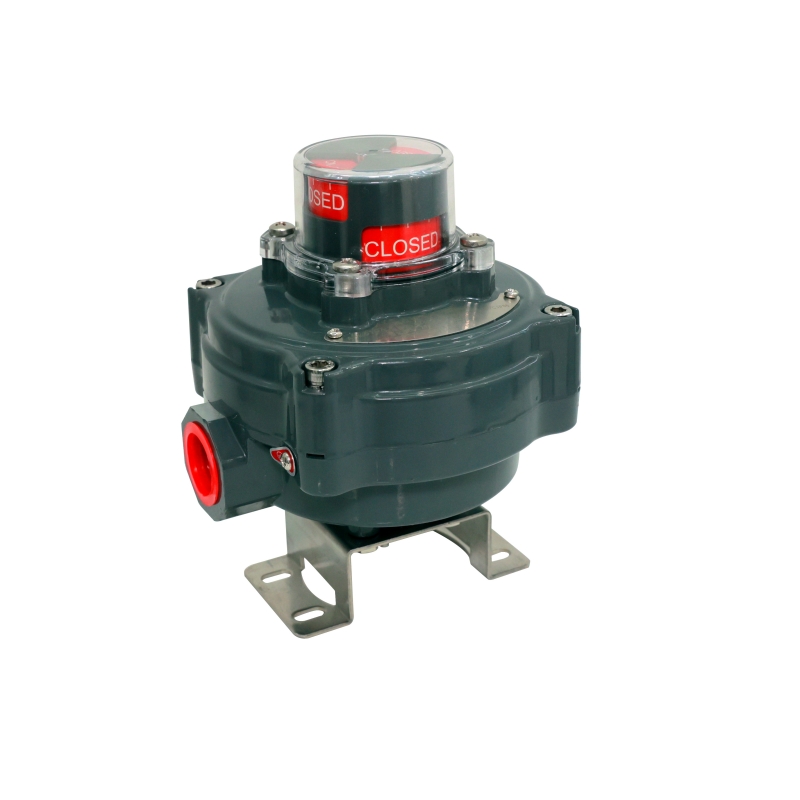

Understanding the Role of a Limit Switch Box

Before diagnosing problems, it’s important to understand what a limit switch box actually does. It serves as the interface between the valve actuator and the control system. Its primary functions include:

• Monitoring valve position: It detects whether the valve is fully open, fully closed, or in an intermediate state.
• Providing electrical feedback signals: It sends open/close signals to the control system (PLC, DCS, or remote panel).
• Visual indication: Most limit switch boxes feature a dome indicator showing the valve’s position.
• Environmental protection: The enclosure protects internal switches and wiring from dust, water, and chemicals (often with IP65 or IP67 ratings).

When a limit switch box fails, operators might notice false readings, no signal output, or a physically stuck indicator dome.

1. Why Is My Limit Switch Box Stuck or Misaligned?

A stuck or misaligned limit switch box is one of the most common problems in automated valve systems. It can stem from various mechanical, electrical, or environmental factors. Below are the key causes and how to diagnose them.

A. Mechanical Misalignment During Installation

When installing a limit switch box on an actuator, precise mechanical alignment is critical. The shaft or coupling between the actuator and the switch box must rotate smoothly without excess friction. If the mounting bracket is slightly off-center or the cam does not align with the actuator stem, the switch may not trigger correctly.

Common symptoms include:

• The position indicator dome stops midway.
• Feedback signals show “open” even when the valve is closed.
• The actuator moves, but the switch box doesn’t respond.

Solution: Reinstall or adjust the coupling alignment. Use the manufacturer’s alignment guide to ensure that the cam contacts both switches evenly. High-quality manufacturers like Zhejiang KGSY Intelligent Technology Co., Ltd. provide pre-calibrated mounting kits that simplify alignment.

B. Dirt, Dust, or Corrosion Inside the Enclosure

Industrial environments often contain contaminants such as dust, oil mist, or moisture. Over time, these elements can enter the limit switch box—especially if the sealing gasket is damaged or the cover is improperly closed.

Consequences include:

• Internal switch movement becomes restricted.
• Springs or cams corrode and stick.
• Electrical short circuits due to condensation.

Solution: Clean the inside of the box with a lint-free cloth and non-corrosive contact cleaner. Replace gaskets and use a limit switch box with IP67 protection for harsh conditions. The KGSY limit switch boxes are designed with durable sealing to prevent ingress of moisture or dust, ensuring long-term stability.

C. Over-Tightened or Loose Mounting Screws

If mounting bolts are overtightened, they can distort the housing or restrict the cam’s rotation. Conversely, loose bolts can cause vibration and gradual misalignment.

Best practice: Always follow torque recommendations during installation and periodically inspect mounting bolts, especially in areas with strong vibration.

D. Damaged Cam or Shaft Coupling

Cams inside the limit switch box determine when micro switches are activated. Over time, mechanical stress can cause the cam to crack, deform, or slip on the shaft. This results in inaccurate position feedback.

How to check: Open the enclosure and manually rotate the actuator. Observe whether the cam rotates fully with the shaft. If not, re-tighten or replace the cam.

E. Temperature or Chemical Exposure

Extreme temperatures or chemical vapors can degrade the plastic or rubber components of a limit switch box. For instance, in petrochemical plants, exposure to solvents can cause indicator domes to become opaque or sticky.

Prevention: Choose a switch box with high chemical resistance and wide operating temperature range. KGSY’s limit switch boxes, certified with ATEX and SIL3 standards, are designed for challenging industrial environments.

2. How Often Should I Maintain a Limit Switch Box?

Regular maintenance ensures accuracy, extends service life, and prevents unexpected failures. The maintenance frequency depends on the working environment, valve cycle rate, and box quality.

A. Standard Maintenance Interval

In most industrial settings, limit switch boxes should be inspected every 6 months and fully serviced once a year. However, high-cycle or outdoor applications (such as offshore platforms or wastewater plants) may require quarterly checks.

B. Routine Inspection Checklist

During each inspection, maintenance technicians should:

• Visually check the indicator dome for cracks, discoloration, or jamming.
• Verify cable glands and seals to prevent water ingress.
• Test the open and close switches using a multimeter to confirm proper signal output.
• Inspect the mounting bracket for rust or vibration damage.
• Reapply lubrication to the cam mechanism if required.
• Ensure all fasteners are tight and free from corrosion.

Documenting these inspections in a maintenance log helps identify trends or recurring problems.

C. Recalibration Schedule

The internal cam should be recalibrated whenever:

• The actuator is replaced or repaired.
• Feedback signals no longer match actual valve positions.
• The limit switch box is moved to a different valve.

Calibration steps:

1. Move the valve to the closed position.
2. Adjust the closed-position cam to trigger the “closed” switch.
3. Move the valve to the open position and adjust the second cam.
4. Verify electrical signals through the control system or multimeter.

D. Environmental Maintenance Tips

If the box operates in high-humidity or corrosive areas:

• Use desiccant packs inside the enclosure.
• Apply corrosion inhibitors on metal parts.
• Choose stainless-steel brackets and screws.
• For outdoor installations, install a sunshade cover to reduce UV exposure and temperature fluctuations.

3. Can a Limit Switch Box Be Repaired or Should It Be Replaced?

Many users wonder whether a malfunctioning limit switch box can be repaired. The answer depends on the type and severity of damage, cost of replacement, and availability of spare parts.

A. When Repair Is Possible

Repair is feasible if:

• The issue is limited to internal micro switch replacement.
• The indicator dome is cracked but the body is intact.
• Wiring or terminals are loose but not corroded.
• The cam or spring is worn out but replaceable.

Use OEM spare parts from certified manufacturers like Zhejiang KGSY Intelligent Technology Co., Ltd. to ensure compatibility and maintain certification compliance (ATEX, CE, SIL3).

B. When Replacement Is Recommended

Replacement is advised if:

• The enclosure is cracked or corroded.
• Internal wiring is shorted due to water damage.
• The box has lost its IP or explosion-proof certification.
• The actuator model or control system has been upgraded.

C. Cost-Benefit Comparison

D. Upgrading for Better Performance

Modern limit switch boxes, like the KGSY IP67 series, include improvements such as:

• Magnetic or inductive sensors instead of mechanical switches.
• Dual cable entries for easier wiring.
• Compact aluminum enclosures with anti-corrosion coating.
• Pre-wired terminal blocks for quick replacement.

Case Study: KGSY Limit Switch Box in Continuous Process Control

A chemical plant in Southeast Asia reported frequent misalignment and feedback issues with older limit switch boxes. After switching to KGSY’s IP67-certified limit switch box, maintenance frequency dropped by 40%, and signal reliability improved significantly. The robust sealing and high-quality cam mechanism prevented sticking even in high-humidity environments.

About Zhejiang KGSY Intelligent Technology Co., Ltd.

Zhejiang KGSY Intelligent Technology Co., Ltd. is a professional and high-tech manufacturer of valve intelligent control accessories. Its independently developed and produced products include valve limit switch boxes, solenoid valves, air filters, pneumatic actuators, and valve positioners, widely used in petroleum, chemical, natural gas, metallurgy, and water treatment industries.

KGSY holds certifications such as CCC, TUV, CE, ATEX, SIL3, and IP67, and strictly follows the ISO9001 Quality Management System. With multiple patents in design, utility, and software, KGSY continuously enhances product reliability and performance. Its products are trusted by customers in more than 20 countries across Asia, Europe, Africa, and the Americas.

Conclusion

A limit switch box that becomes stuck or misaligned can compromise the safety and efficiency of valve automation systems. Understanding the mechanical and environmental causes, performing regular maintenance, and knowing when to repair or replace the unit are essential for long-term reliability. By following the maintenance recommendations above—and choosing a certified, high-quality manufacturer like KGSY Intelligent Technology—you can minimize downtime, improve feedback accuracy, and ensure smooth plant operation for years to come.
