In the diverse landscape of industrial fluid control, not every application requires heavy-duty explosion-proof enclosures or exotic 316L stainless steel alloys. In thousands of water treatment plants, HVAC systems, food and beverage processing lines, and general manufacturing facilities, the primary requirement for valve automation is a hardware solution that is reliable, easy to install, and—most importantly—cost-effective.
For decades, the APL-210 series limit switch box has held its position as the undisputed industry standard for general-purpose valve monitoring. It bridges the gap between manual valve operation and fully integrated digital feedback without breaking the project budget.
At Zhejiang KGSY Intelligent Technology Co., Ltd., we have refined the APL-210 design to meet the modern demands of global process industries. Here is an in-depth technical analysis of why the APL-210 series remains the go-to choice for engineers worldwide and how it optimizes the balance between performance and price.
1. The Design Philosophy: Rugged Simplicity
The APL-210 was engineered with a “no-nonsense” approach to field reliability. In general industrial environments, the greatest threats to electronics are moisture, dust, and physical impact.
Die-Cast Aluminum Enclosure
Unlike plastic alternatives that can become brittle under UV exposure or crack under mechanical stress, the APL-210 features a robust die-cast aluminum housing. This provides the structural rigidity needed to maintain precise alignment with the actuator. To protect against environmental degradation, the housing undergoes a rigorous chromate conversion process followed by a high-visibility polyester powder coating. This ensures that the unit resists peeling and corrosion even when installed in humid or outdoor environments.
IP67 Weatherproof Protection
Despite its entry-level price point, the APL-210 does not compromise on sealing. It is rated to IP67 (NEMA 4, 4X), meaning it is completely dust-tight and can withstand temporary immersion in water. This is achieved through a precision-engineered NBR O-ring system and captive cover bolts that ensure a uniform seal every time the box is opened and closed for maintenance.
2. Internal Mechanics: The “Set-and-Forget” System
The primary function of a limit switch box is to provide a clean electrical signal to the PLC or DCS. The APL-210 achieves this through a refined internal architecture designed for speed of commissioning.
Quick-Set Cams (Splined Architecture)
One of the biggest frustrations for field technicians is adjusting the switch “trip points” during valve commissioning. The APL-210 utilizes a splined, spring-loaded cam system.
-
Tool-Free Adjustment: There is no need for Allen keys or screwdrivers to set the cams. A technician simply lifts the cam, rotates it to the desired position, and lets it snap back into the splines.
-
Vibration Resistance: Because the cams are splined rather than held by friction screws, they cannot slip over time due to pipeline vibration. Once set, the signal remains accurate for thousands of cycles.
Standardized SPDT Mechanical Switches
The APL-210N is typically equipped with two SPDT (Single Pole Double Throw) mechanical micro-switches. These switches are the workhorses of the industry, capable of handling a wide range of electrical loads:
-
AC: Up to 250V @ 3A
-
DC: Up to 125V @ 0.4A
For applications requiring lower current or different electrical signatures, the APL-210 platform is flexible enough to accommodate proximity sensors or gold-plated contacts, though the standard mechanical version remains the most popular for its “universal” compatibility with most PLC input cards.
3. Visual Feedback: High-Visibility Monitoring
In a busy plant environment, an operator shouldn’t have to check a tablet or a control screen to know if a valve is open or closed. They should be able to see it from across the room.

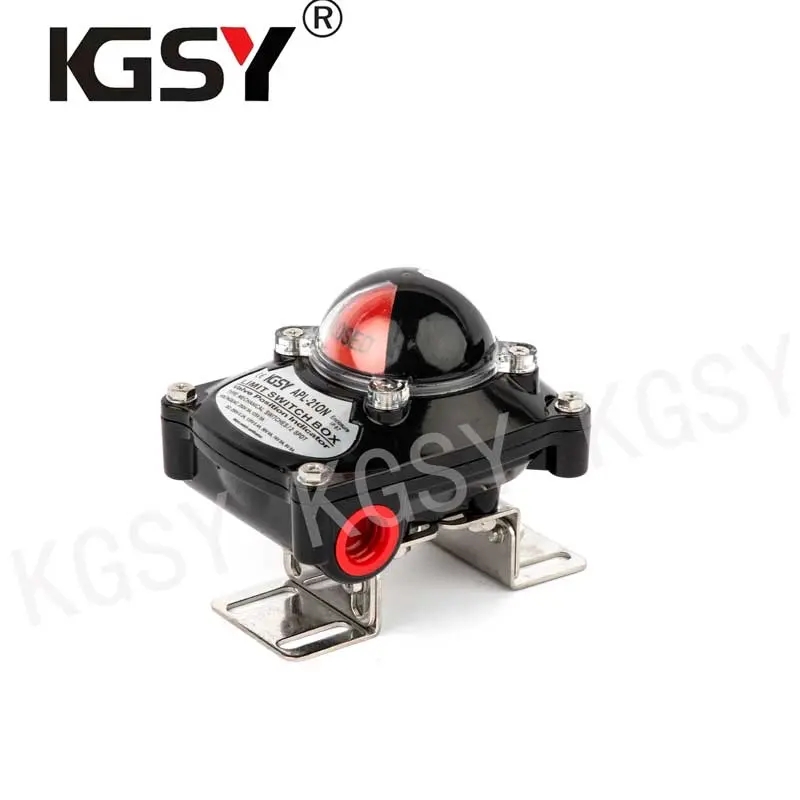

The APL-210 features a 3D high-visibility visual indicator. This dome, made of shatterproof polycarbonate, provides a clear red/yellow (or red/green) color-coded status.
-
0-90 Degree Viewing: The indicator is designed to be visible from virtually any angle, even from a distance or in low-light conditions.
-
Standardized Alignment: The indicator is mechanically linked to the internal shaft, ensuring that the “OPEN” and “CLOSED” text always perfectly mirrors the physical position of the valve ball or butterfly disk.
4. The NAMUR Standard: Universal Compatibility
One of the reasons the APL-210 became an industry standard is its adherence to international mounting norms. The unit is designed fully in accordance with the VDI/VDE 3845 (NAMUR) standard.
This means the APL-210 can be mounted to almost any pneumatic actuator in the world, regardless of the brand. We provide a standardized stainless steel NAMUR bracket with every unit, allowing for four standard mounting sizes:
-
$30 \times 80 \text{ mm}$ (Height 20 mm)
-
$30 \times 80 \text{ mm}$ (Height 30 mm)
-
$30 \times 130 \text{ mm}$ (Height 30 mm)
-
$30 \times 130 \text{ mm}$ (Height 50 mm)
This universal compatibility reduces the need for custom fabrication and simplifies the supply chain for maintenance managers who have multiple brands of actuators on a single site.
5. Ease of Wiring and Installation
Installation time is a significant hidden cost in any project. The APL-210 is designed to get the valve “online” as quickly as possible.
-
Dual Cable Entries: The unit features two $1/2″ \text{ NPT}$ (or M20) cable entries. This allows for “daisy-chaining” of signals or separate entries for power and feedback, reducing the complexity of the field conduit run.
-
8-Point Terminal Strip: The internal terminal block is clearly numbered and angled for easy access. Even with thick-gauge wire, there is ample “room to breathe” inside the housing, preventing the crowded-wire syndrome that often leads to short circuits in smaller boxes.
6. Why “Cost-Effective” Does Not Mean “Cheap”
There is a common misconception that cost-effective hardware is synonymous with poor quality. The APL-210 series disproves this. By focusing on high-volume production of a standardized design and omitting expensive features that general-purpose applications don’t need (like flameproof certifications for non-hazardous zones), we can pass those savings directly to the customer.
“The APL-210 represents the ultimate ‘Utility’ player. It doesn’t try to be a high-end positioner or a complex digital bus device. It does one thing—reporting valve position—and it does it with 99.9% reliability in standard industrial conditions.”
Conclusion: The Reliable Choice for General Industry
When you are managing a facility with hundreds of automated valves, you need a position monitor that you can trust to work without constant babysitting. The APL-210 series offers the perfect trifecta: a rugged aluminum body, tool-free internal adjustment, and universal NAMUR mounting.
At Zhejiang KGSY Intelligent Technology Co., Ltd., we continue to manufacture the APL-210 to the highest quality standards, ensuring that “standard” never means “subpar.” Whether you are upgrading a municipal water plant or outfitting a new conveyor system, the APL-210 remains the most sensible, reliable, and cost-effective choice on the market today.
