4V Single & Double Solenoid Valve (5/2 Way) for Pneumatic Actuator

Short Description:

4V series is a 5 ported 2 position directional control valve used to move cylinders or pneumatic actuators. This series has 4V310, 4V320, 4V210, 4V220 and other type.


Product Detail

Product Tags

Product Characteristics

1. Pilot-oriented mode:Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central function for your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has lttle attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.

Technical Parameters

Specification
Model

4V210-06
4V220-06

4V210-08
4V220-08

4V310-08
4V320-08

4V310-10
4V320-10

Fluid

Air (to be filtered by 40um filter element)

Acting

lnternal pilot or external pilot

Port size [Note1]

In=Out=Exhaust=1/8"

ln=Out=1/4"
Exhaust=1/8"

In=Out=Exhaust=1/4"

ln=Out=3/8”
Exhaust=1/4"

Orifice size(Cv)
[Note4]

4v210-08, 4V220-08: 17.0 mm2 (Cv = 1.0)
4v230C-08: 13.6 mm2 (Cv = 0.8)

4v310-10, 4v320-10: 28.0 mm2 (Cv = 1.65)
4v330C-10: 21.3 mm2 (Cv = 1.25)

Valve type

5 port 2 position

Operating pressure

0.15 ~ 0.8 MPa (21 ~ 114 psi)

Proof pressure

1.2 MPa (175 psi)

Temperature

-20 ~ + 70 °C

Material of body

Aluminum alloy

Lubrication [Note2]

Not required

Max.frequency [Note3]

5 cyclelsec

4 cyclelsec

Weight (g)

4V210-06: 220
4V220-06: 320

4V210-08: 220
4V220-08: 320

4v310-08: 310
4V320-08: 400

4V310-10: 310
4V320-10: 400

[Note1] PT thread, G thread and NPT thread are available.
[Note2] Once lubricated air is used, continue with same medium to optimise valve lifespan. Lubricants like

ISO VG32 or equivalent are recommended.
[Note3] The maximum actuation frequency is in the no-load state.
[Note4] Equivalent orifice S and Cv are all calculated from the flow rate data.

Coil Specification

Item

4V210, 4V220, 4V310, 4V320

Standard voltage

AC220V

AC110V

AC24v

DC24v

DC12V

scope of voltage

AC: ± 15%  DC: ± 10%

Power consumption

4.5VA

4.5VA

5.0VA

3.0W

3.0W

Protection

IP65 (DIN40050)

Temperature classification

B Class

Electrical entry

Terminal, Grommet

Activating time

0.05 sec and below

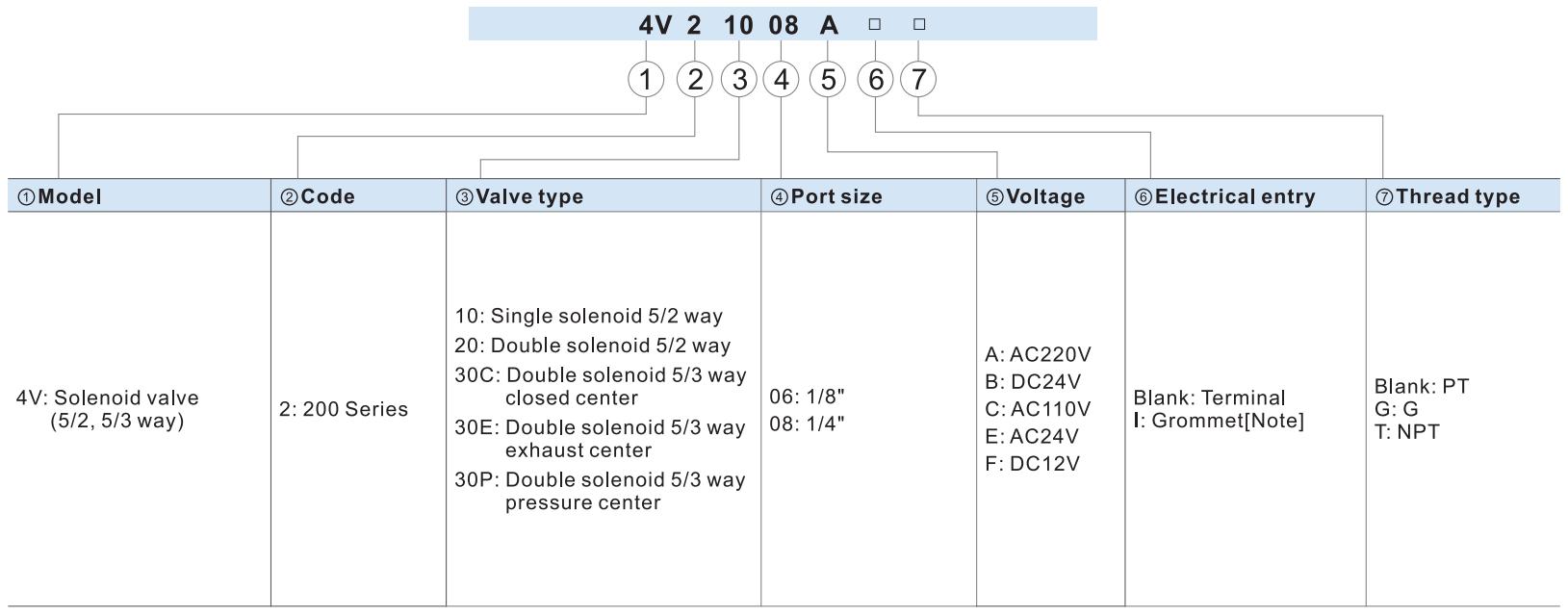

Ordering Code
